Aluminum Housing 90 Degree Gearbox Torque 17.42Nm Power 1.92kW

90 Degree Gearbox Torque 17.42Nm Power 1.92kW with corrosion resistant Aluminum Housings. These compact gearboxes are light weight, small sizes and space-saving. They use alloy steel case hardened spiral bevel gears for high efficiency, quiet operation, high rigidity, wear resistance and long service life. Available in 1:1 and 2:1 ratio. 2-way and 3-way configurations. Available in solid shafts for input and output configurations. The gear transmission average efficiency up to 94%. Universal mounting dimensions assure maximum design flexibility. They are designed for high efficiency, high transmission capacity, low backlash, quiet operation, low running temperature and long service life. Application examples in automation, transfer gearboxes, packaging machines, linear technology, and machine and plant construction.

Product Catalog

Ultra-lightweight Bevel Gearbox.pdf

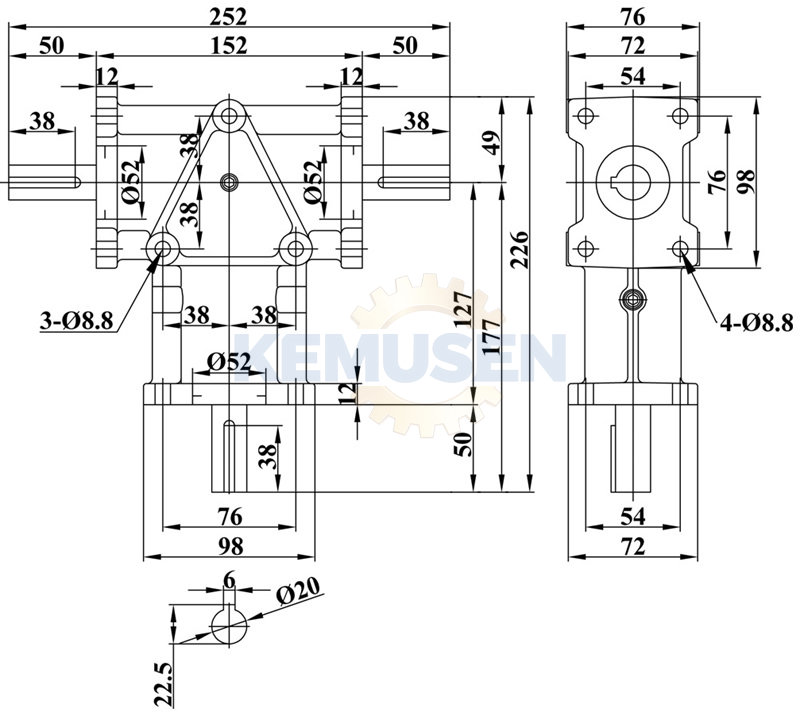

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
