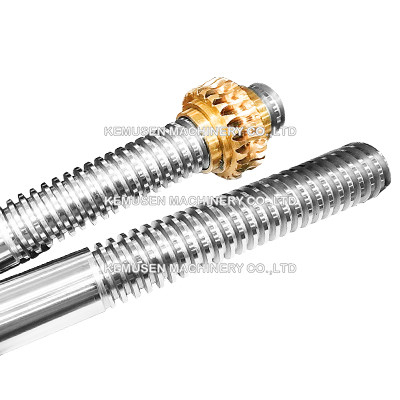

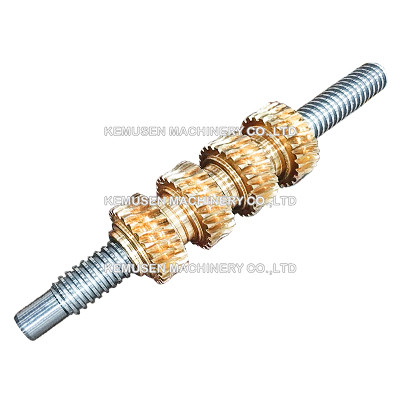

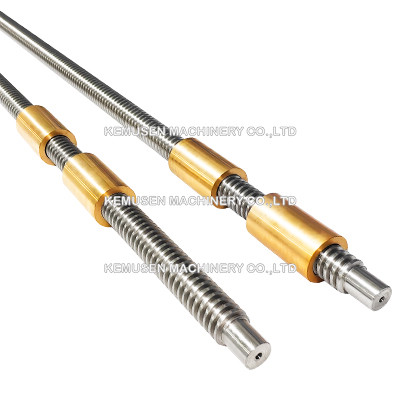

Acme Screw And Nut Assemblies

An Acme Screw And Nut Assemblies is a mechanical system that converts rotary motion into linear motion using a trapezoidal thread, ideal for positioning and lifting in applications like kinds of screw jacks, linear actuators, 3D printers or machine tools, offering advantages like self-locking (no brakes needed) and low cost compared to ball screws, though they rely on sliding contact and friction. The screw mates with a matching nut, and is made from materials like steel or bronze, often paired with plastic nuts for smoother operation, providing precise, quiet, and strong linear movement.

Key Features & Benefits

Self-Locking: Often doesn't require brakes, holding loads securely even when power is off.

Cost-Effective: Generally a lower-cost solution for linear motion, much less costly than ball screw.

Quiet Operation: No rolling elements, leading to quieter performance.

Load Holding: Excellent for static loads and positioning.

How They Work

Motion Conversion: Turning the Acme screw causes the nut (or vice versa) to move linearly along its axis, translating rotation into straight-line movement.

Trapezoidal Thread: The distinctive trapezoidal shape provides a broad, strong base, allowing it to carry heavier loads than square threads.

Sliding Contact: Unlike ball screws, Acme systems use sliding contact, which generates more friction but makes them self-locking and quieter.

Materials & Types

Screw Materials: Carbon steel, stainless steel.

Nut Materials: Bronze (for lubrication), internally lubricated plastics (for smooth, quiet action), steel, brass.

Nut Types: Available in various forms, including flanged or hex nuts, with anti-backlash designs available.

Important Considerations

Matching: Ensure the nut and screw have the same thread size, direction, and pitch (threads per inch).

Lubrication: Crucial for performance, often using grease or specialized plastic nuts.
