50 Ton Screw Jack

50 Ton Screw Jack with self-locking trapezoidal screw Tr120x20. Please note that higher speeds of travel can be achieved with larger screw pitches or multiple start screws. The worm gear screw jack's maximum drive speed (standard grease lubrication) of 1500 RPM must not be exceeded. Gear ratios include 10-2/3:1 and 32:1. Screw jacks and lifting systems offer wide-ranging lifting and positioning solutions for diverse industries. Before starting installation work, the direction of rotation of all worm gear screw jacks, bevel gear boxes and the drive motor must be checked with regard to the feed direction of each individual worm gear screw jack.

Product Catalog

Standard Machine Screw Jack.pdf

Product Specifications

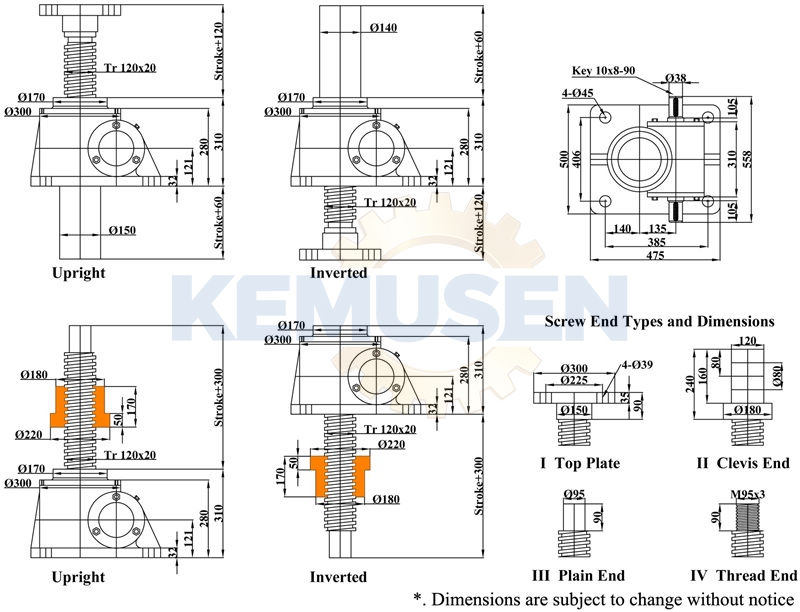

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
