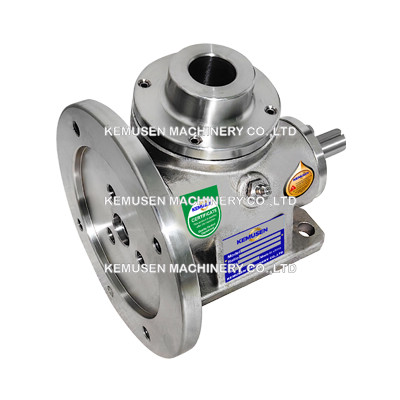

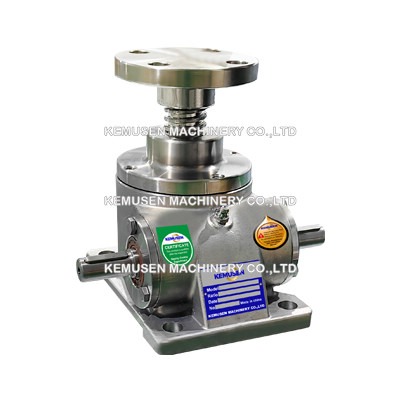

5 Ton Stainless Steel Machine Screw Jack

5 Ton Stainless Steel Machine Screw Jack lift and precisely position maximum static loads up to 5 tons. Stainless steel trapezoidal screw diameter 40 mm, pitch 7 mm, single lead stainless screw jacks with self locking. Custom double lead 14 mm, double lead stainless screw jacks offer increased travel speed, but weak self-locking. Available in 6:1, 12:1 and 24:1 worm gear ratios. These stainless steel jacks  are specifically designed for harsh environments. They incorporate all of the same features as a standard machine screw jacks, but can be used in severe environments where other materials are inadequate. All of the exposed surfaces are made of 304 stainless steel including the lifting screw, housing, shell cap, worm and dust guard.

Product Catalog

Stainless Steel Machine Screw Jack.pdf

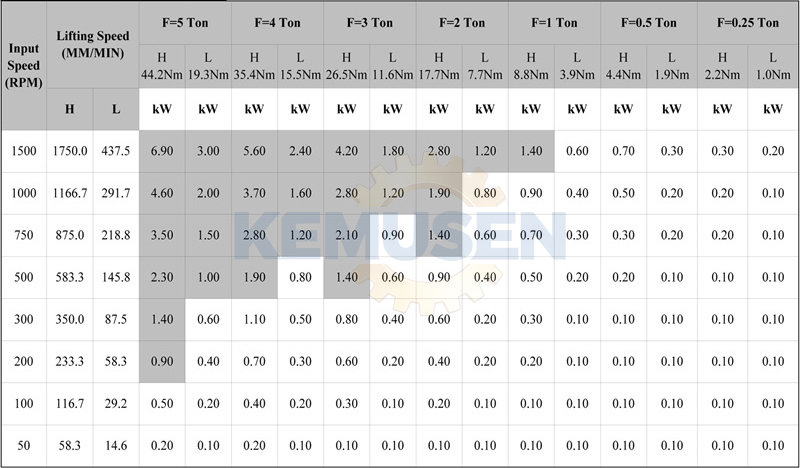

Product Specifications

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
