5 Ton Bevel Gear Screw Jack

5 Ton Bevel Gear Screw Jack with a 5-ton static load capacity, also called a quick lifting screw jack. Available in 3:1 bevel gear ratios. Lifting screw diameter 40 mm, pitch 7 mm, custom 14 mm lead. There are no standard stroke and screw jacks travel lengths are built with customers required, maximum stroke length up to 3000 mm. These Bevel Gear Screw Jacks are made with spiral bevel reduction gears and trapezoidal screws, available in both rotating and travelling versions. These bevel gear jacks with trapezoidal screws offer higher efficiency, higher lifting speed, higher duty cycle and longer lifespan than worm gear screw jacks. Screw Jack System is usually used for lifting heavy duty load or lifting platform. Bevel Gear Jack System mainly includes bevel gear jack, bevel gearbox, electric motor, connecting rod coupling, gear reducer. Can customize bevel gear jacks to your specifications.

Product Catalog

Bevel Gear Machine Screw Jack.pdf

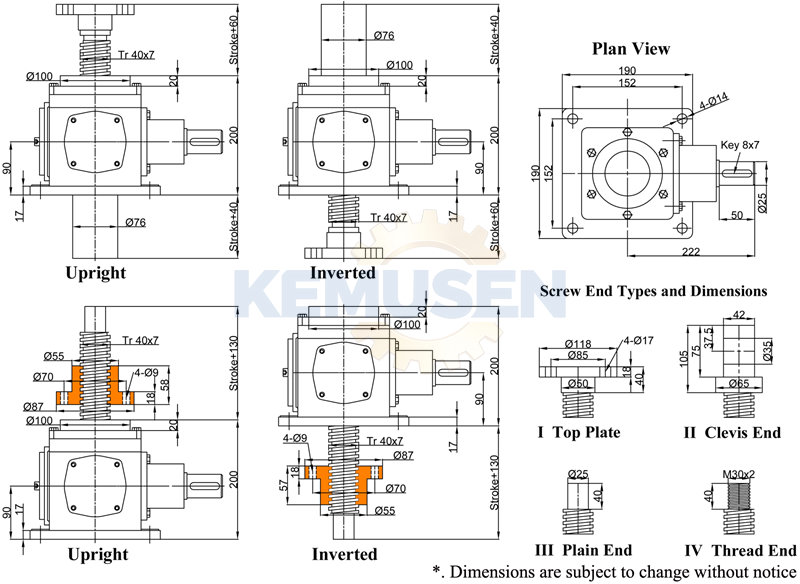

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
