5 Ton Bevel Gear Ball Screw Jack

5 Ton Bevel Gear Ball Screw Jack with a high precision Ballscrews 4010 and 4020. The bevel gear jack is made with spiral bevel reduction gears and ball screws, available in both translating and rotating travelling nut versions. They allow higher lifting speeds than the usual Screw jacks. Available in 3:1 bevel gear ratios. There are no standard stroke and bevel ball jacks travel lengths are built with customers required, maximum stroke length up to 3000 mm. The high performance bevel gear ball jacks are with bevel gear design eliminates the need for bevel gear boxes in multiple screw jack systems. Bevel gear ball jacks achieve fast travel speeds and are rated for near continuous operation.

Product Catalog

Bevel Gear Ball Screw Jack.pdf

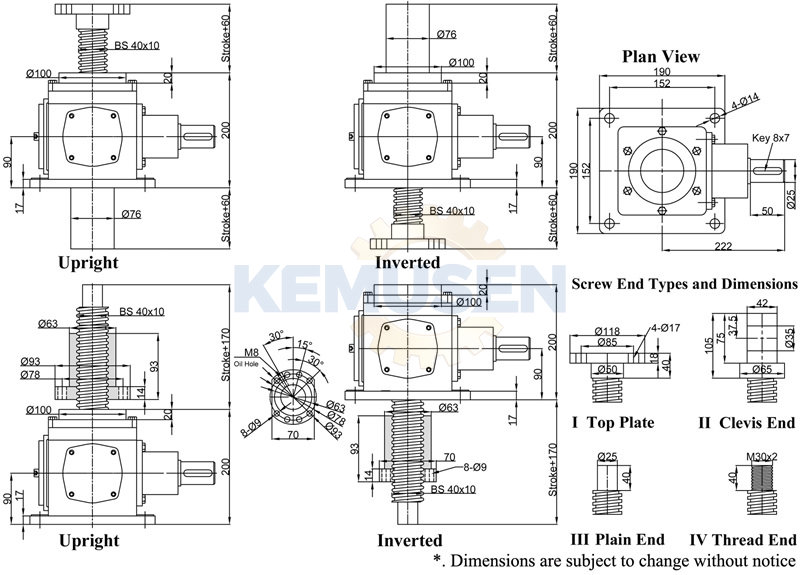

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
