KMC35T
KEMUSEN
35 Ton Screw Jack with self-locking trapezoidal screw Tr100x20. Screw Jacks are manufactured in the standard configuration Upright or Inverted Translating Screw with male, female Screw end or top plate, Upright/Inverted Rotating Screw with flanged nut. We do not have standard Work Screw length and each Screw Jack is manufactured following specific requirements. Gear ratios include 10-2/3:1 and 32:1. They can be employed to lift, pull, move, or align any kind of loads, with a perfect synchronism which can hardly be obtained with other handling methods. our trapezoidal screw jacks are absolutely irreversible, that is, they can support their applied loads without needing any brakes or other locking systems.
Product Catalog
Standard Machine Screw Jack.pdf

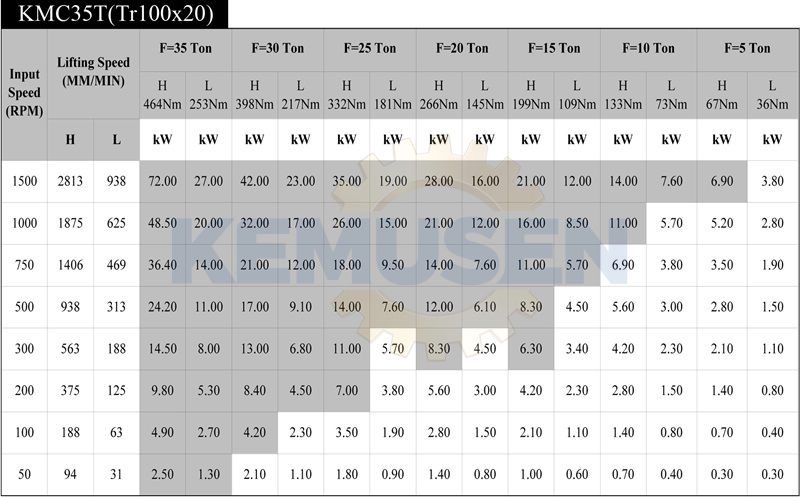

Product Specifications

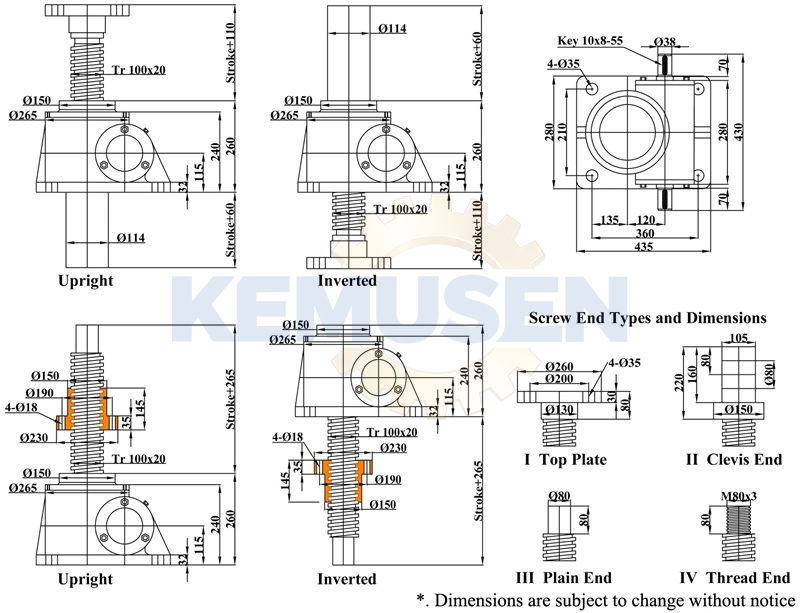

Product Dimensions
Free 2d .dwg, .dxf drawing, 3d cad models.
