3 Ton Bevel Gear Screw Jack

3 Ton Bevel Gear Screw Jack with a 3-ton static load capacity, also called a quick lifting screw jack. Available in 2.5:1 bevel gear ratios. Lifting screw diameter 32 mm, pitch 6 mm, custom 12 mm lead. There are no standard stroke and screw jacks travel lengths are built with customers required, maximum stroke length up to 3000 mm. As opposed to the worm gear screw jack, spiral bevel gear mechanism are used. So it offers higher efficiency and greater speed than other worm gear jack.

Product Catalog

Bevel Gear Machine Screw Jack.pdf

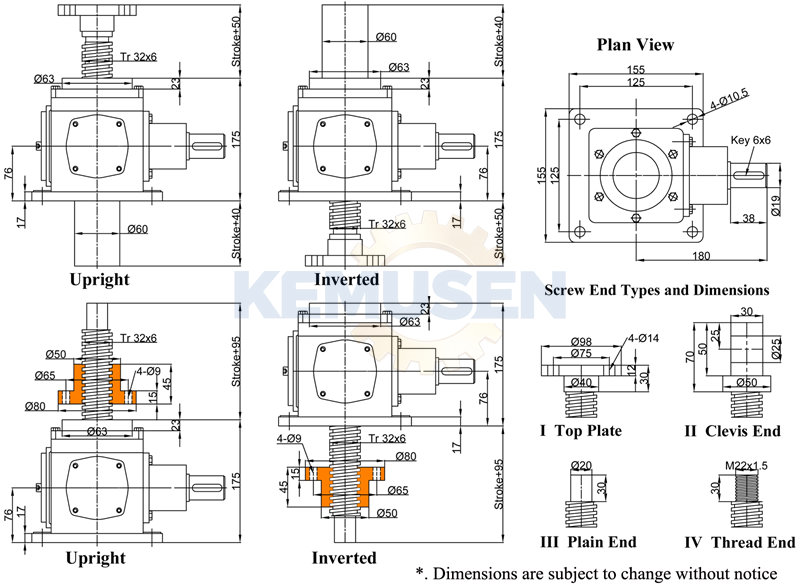

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
