3 Ton Bevel Gear Ball Screw Jack

3 Ton Bevel Gear Ball Screw Jack with a high precision Ballscrews 3210 and 3220. The bevel gear screw jack is made with spiral bevel reduction gears and ball screws, available in both rotating nut and travelling screw versions. Available in 2.5:1 bevel gear ratios. There are no standard stroke and bevel ball jacks travel lengths are built with customers required, maximum stroke length up to 2500 mm. The high performance bevel ball actuators are also made with spiral bevel reduction gears and ball screws. Both products are suitable for linear transmissions under intensive use, high speeds, and continuous service. Quick-lifting screw jacks can be used as either single drive units  or multi-screw lifting systems. Multi-screw lifting systems with mechanical synchronization are driven by a single motor, which makes them impervious to unequal load distribution and its negative effects on the synchronization of the screw jacks.

Product Catalog

Bevel Gear Ball Screw Jack.pdf

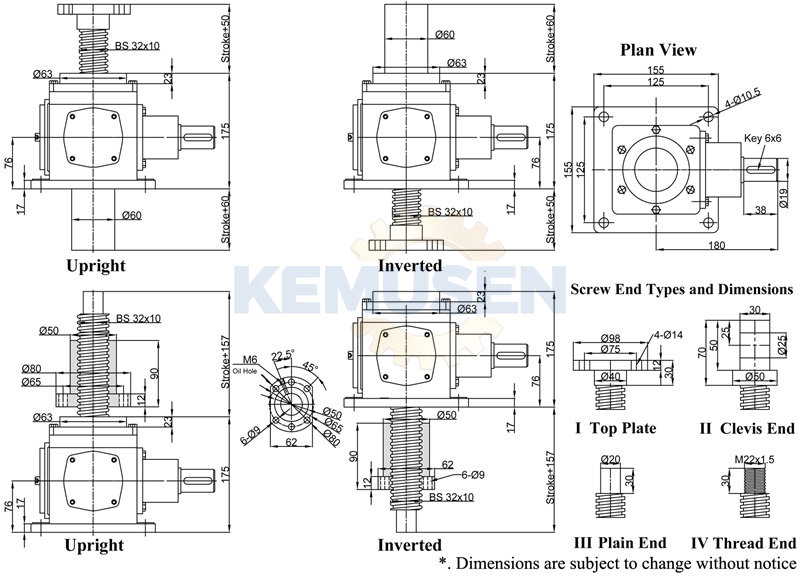

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
