KMC25T
KEMUSEN
25 Ton Screw Jack with self-locking trapezoidal screw Tr90x16. Multi-purpose standard type screw jack which self-locks. Structured by a highly accurate worm gear and a trapezoid shaped screw shaft. Brakes not required for standard use. Available with translating lifting screw or rotating lifting nut. Gear ratios include 10-2/3:1 and 32:1. In each case, the different industries and the different power parameters require a powerful, reliable screw jack that is easy to adapt to the specific application, and to extend to a complete worm gear screw jack system. Standard options include electric motors, safety nuts, protective tubes, bellows, trunnion mounting, anti-turn, micro switches and adjustable backlash.
Product Catalog
Standard Machine Screw Jack.pdf

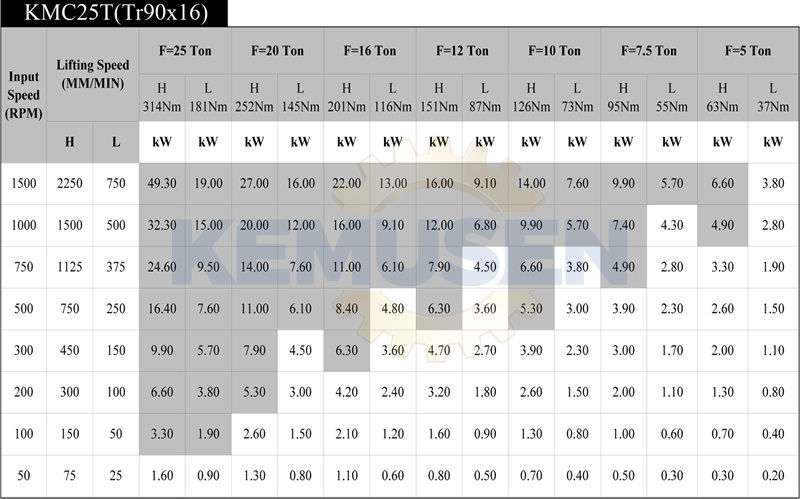

Product Specifications

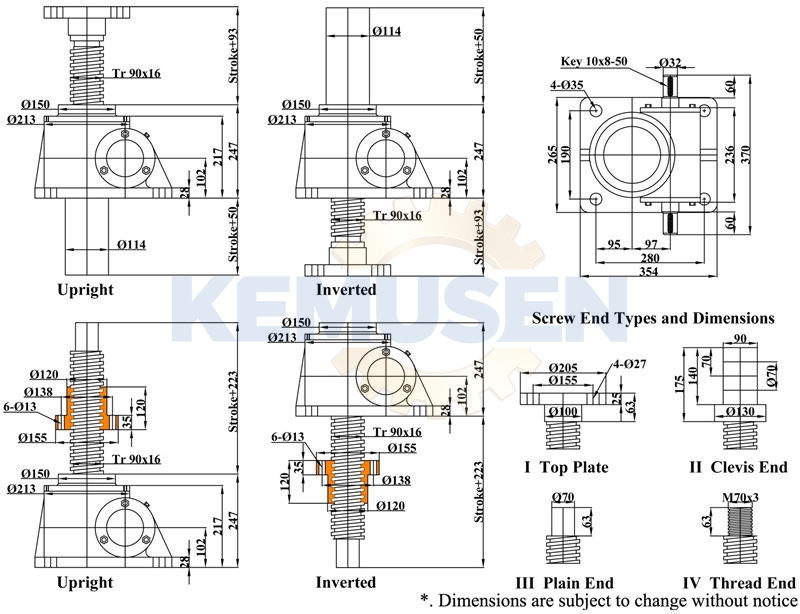

Product Dimensions
Free 2d .dwg, .dxf drawing, 3d cad models.
