20 Ton Stainless Steel Machine Screw Jack

20 Ton Stainless Steel Machine Screw Jack lift and precisely position maximum static loads up to 20 tons. Stainless steel trapezoidal screw diameter 65 mm, pitch 12 mm, single lead stainless screw jacks with self locking. Custom double lead 24 mm, double lead stainless screw jacks offer increased travel speed, but weak self-locking. Available in 8:1, 12:1 and 24:1 worm gear ratios. These stainless steel jacks are used for extreme environmental and operational conditions. All external surfaces and fasteners are stainless steel or bronze. The shiny casing, mounting flange and cover indicate the highest degree of corrosion resistance. One advantage of a stainless steel screw jack is the ability to link them together. Many design engineers consider screw jacks for use in their applications, as they have a unique ability to be linked together using shafting and miter boxes using a single common motor. Can customize stainless steel jacks to your specifications.

Product Catalog

Stainless Steel Machine Screw Jack.pdf

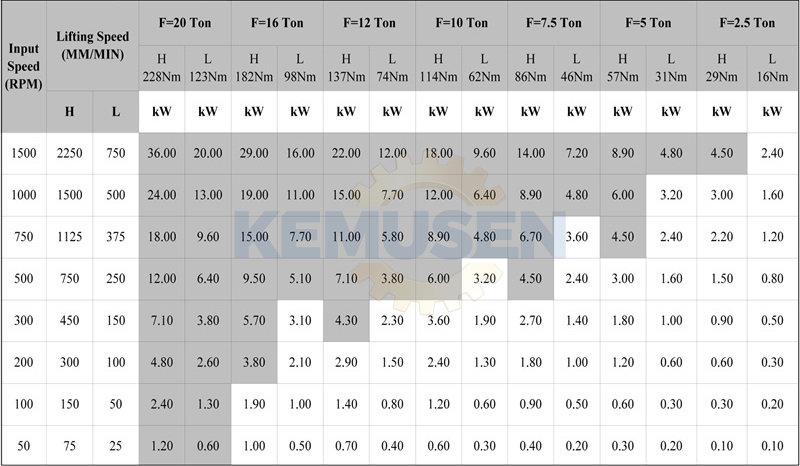

Product Specifications

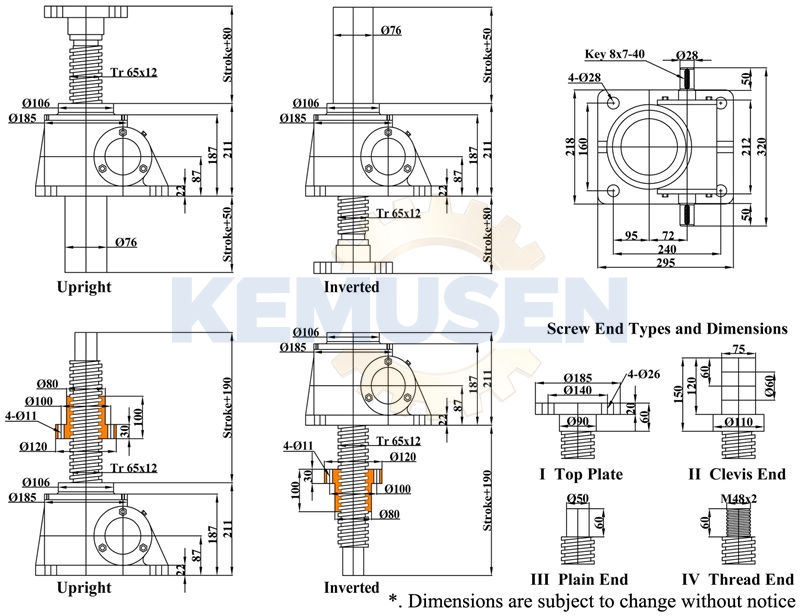

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
