20 Ton Bevel Gear Screw Jack

20 Ton Bevel Gear Screw Jack with a 20-ton static load capacity, also called a quick lifting screw jack. Available in 3:1 bevel gear ratios. Lifting screw diameter 80 mm, pitch 12 mm, custom 24 mm lead. There are no standard stroke and screw jacks travel lengths are built with customers required, maximum stroke length up to 5000 mm. Bevel gear screw jacks are making them an ideal choice for complete screw jack lifting systems. These improvements will require a less in human and material resources, also save much cost and time. These Bevel Gear Jacks with trapezoidal screw offer higher efficiency, higher lifting speed, higher duty cycle and longer lifespan than mechanical worm gear screw jacks. Trapezoidal screw type bevel gear jacks with single lead screws provide the benefits of a self-locking screw. Can be mounted in any attitude. Generally maintenance free.

Product Catalog

Bevel Gear Machine Screw Jack.pdf

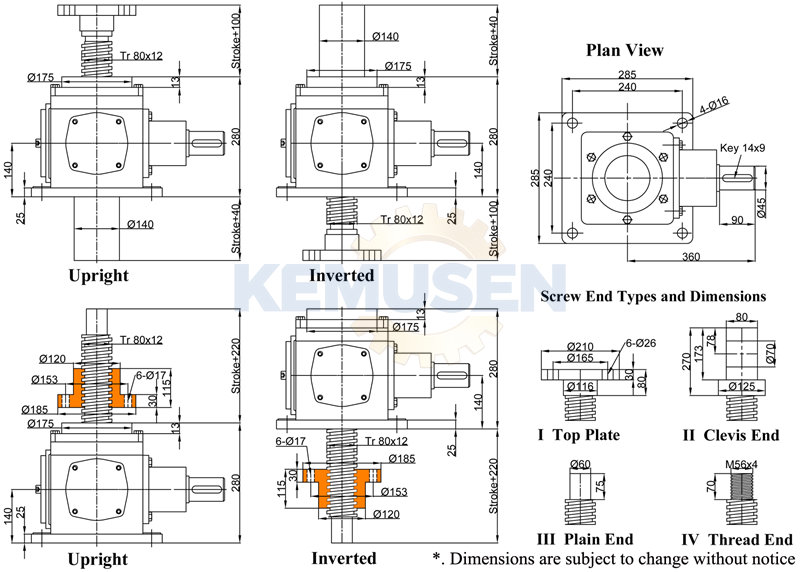

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
