2.5 Ton Stainless Steel Machine Screw Jack

2.5 Ton Stainless Steel Machine Screw Jack lift and precisely position maximum static loads up to 2.5 tons. Stainless steel trapezoidal screw diameter 30 mm, pitch 6 mm, single lead stainless screw jacks with self locking. Custom double lead 12 mm, double lead stainless screw jacks offer increased travel speed, but weak self-locking. Available in 6:1, 12:1 and 24:1 worm gear ratios. These stainless steel jacks are typically used in harsh or corrosive environments or those with a regular wash down requirement. Industries such as Marine, Water Treatment, Nuclear, Food Processing, Offshore, Pulp and Paper use stainless steel screw jacks. For each application, variants with different material grades or plated components can be used, tailoring the product for the specific application and budget.

Product Catalog

Stainless Steel Machine Screw Jack.pdf

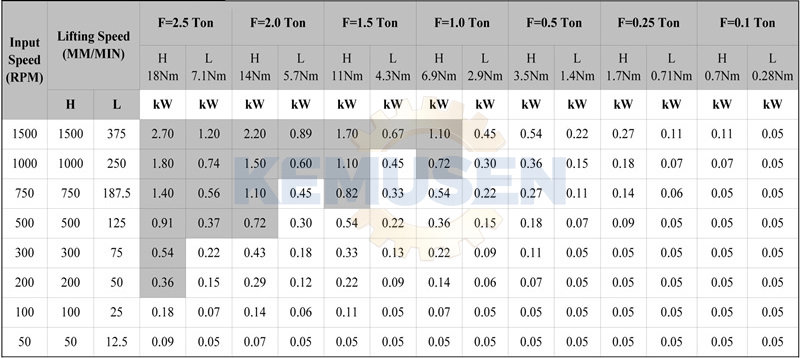

Product Specifications

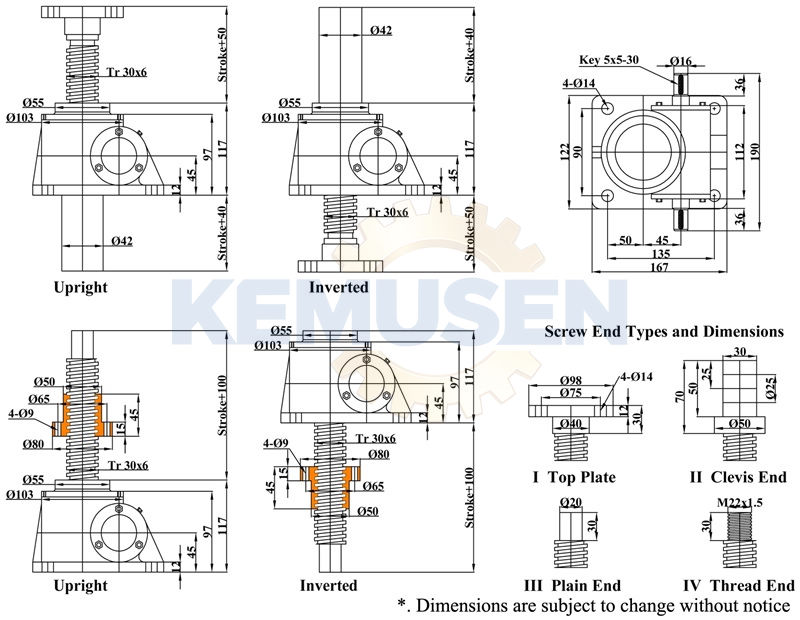

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
