2.5 Ton Screw Jack

2.5 Ton Screw Jack with self-locking trapezoidal screw Tr30x6 is used where precisely controlled linear movement and positioning are needed. Operated manually or with air, hydraulic or electric motors, machine screw jacks can be used individually, in tandem or in multiple arrangements. Gear ratios include 6:1, 12:1 and 24:1. With such a wide range of standard machine screw jack configurations, we gives your design flexibility and economy. Examples of these standard options include upright or inverted screws with threaded or top plate screw end, as well as upright and inverted screws with top plate, keyed lifting screw, limit switches, IEC, NEMA C-face motor flanges and position indicators.

Product Catalog

Standard Machine Screw Jack.pdf

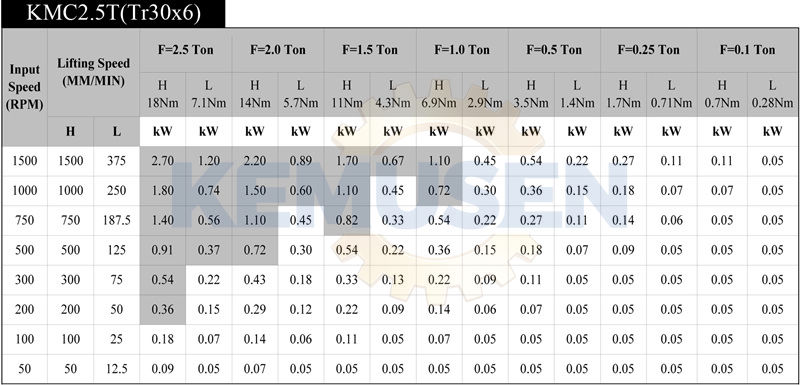

Product Specifications

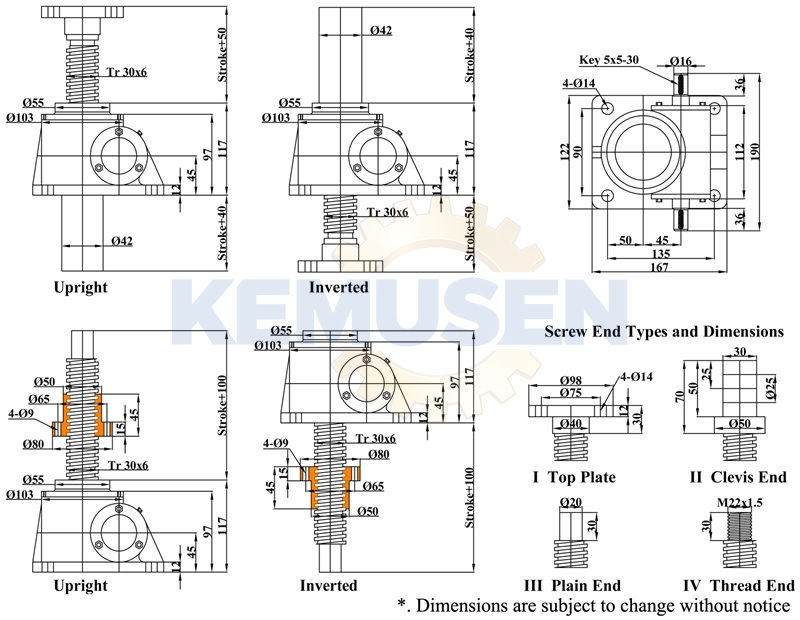

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
