1ton Worm Gear Ball Screw Jack Price

A 1-ton worm gear ball screw jack is a high-efficiency linear actuator used to lift or position loads up to 2,000 lbs (10 kN). Unlike standard machine screw jacks, ball screw versions use rolling-element bearings between the screw and nut, which reduces input torque requirements by up to two-thirds and allows for higher duty cycles. Because ball screws are highly efficient, they are not self-locking. A brake motor or external locking device is required to hold the load in position.
Availability:
Quantity:
Inquire Add to Basket

  • KMN10

  • KEMUSEN

A 1ton (2,000 lbs) worm gear ball screw jack is a high-efficiency linear actuator designed for high frequency use (NOT continuous use), high speeds, and precise positioning. Unlike standard machine screw jacks, these utilize recirculating ball bearings to minimize friction, which significantly reduces the input torque required—often by up to two-thirds. Ball screw, rolled thread, diameter 20 mm,  lead 5 mm, 10 mm or 20 mm. The most common standard worm gear ratios are 5:1 (high speed) and 20:1 (low speed). Ball screw can be customized in length and cut for free. Ball screw jacks are not self-locking at any standard gear ratio because of their high efficiency and low internal friction. A brake motor or external locking mechanism is always required to prevent the load from backdriving the jack when power is removed.


Product Catalog

Worm Gear Screw Jack.pdf


Product Specifications



Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.


Maximum Load (Static)
1ton
Ball Screw Diameter
20mm
Ball Screw Lead
5mm
10mm
20mm
Travel Length
Customized
Installation Methods
Upright
Inverted
Horizontal
Pivoting
End Conditions
Top Plate
Male Clevis
Plain End
Threaded End
Rod End
Female Clevis
Fork End
Basic Design
Translating Screw
Rotating Screw
Anti Rotation Screw
Double Clevis
Trunnion
Market price
$150
Factory price
$150
Payment terms
T/T
Credit card
Product origin
GuangDong of China
Lead time
20 Working Days
Shipping port
Shenzhen
Guangzhou
Delivery
Express Delivery (door to door)
Air Freight
Sea Freight (Ocean Freight)
Land Freight (Ground/Road/Rail)
Price terms
EXW (Ex Works)
CIF
FOB
DDU
DDP
Color
Blue
Black
Grey
Customize

We produce the best-performing worm gear ball screw jacks are made from high-quality materials that meet international standards. Below is a summary of the various materials used in ball screw jack construction.

KMC0

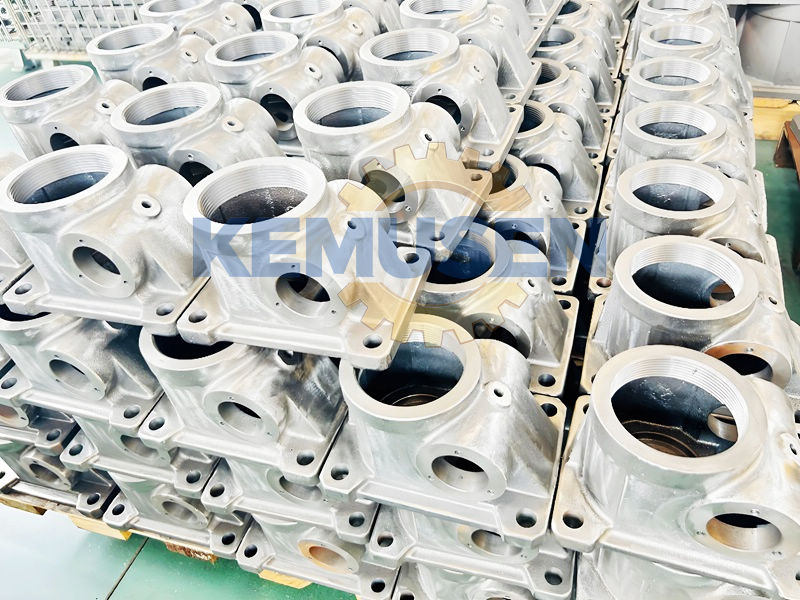

Housing: Typically made from nodular cast iron. Custom 304 stainless steel

Worm Shaft: Typically made from 45# steel, heat treatment process. Custom 304 or 316 stainless steel.

Worm Gear (Drive Sleeve): Typically made from High-Strength Bronze (such as Aluminum Bronze or Tin Bronze).

Ball screw: Typically made from SCM450 hardened  alloy steel. Hardness: HRC 58-62.

Ball nut: Typically made from SCM415H hardened alloy steel. Hardness: HRC 58-62.

Steel ball: Typically made from SUJ2 bearing steel. Hardness: HRC 60

Bearing: Tapered Roller Bearings or Ball Thrust Bearings, Typically made from high-carbon chrome bearing steel (GCr15). Custom 304 stainless steel.

KMB1

Note: Ball Screws and Nuts are made from hardened alloy steel with hardened bearing balls carrying the load between nut and screw.

KMB0

XXX
