15 Ton Screw Jack

15 Ton Screw Jack with self-locking trapezoidal screw Tr58x12, The machine screw jacks are suitable for low speed, low frequency operations. Major components include trapezoidal screw and high precision worm gear. Simple, compact and affordable. Gear ratios include 8:1, 12:1 and 24:1. The unique sliding motion of trapezoidal screw provides smooth and consistent low speed, suitable for low frequency operations. These Mechanical screw jacks can be operated by manually or by electrical motor. More than one screw jacks can be connected together to move simultaneously. Screw jacks are used for Paper, press, printing industry, Gypsum factories, Bridge jacks for road and bridge lifting, Shipyards, Opening and closing of penstocks, Industrial process, Roll form machinery, Mining industry, Sheet metal forming machinery, Mechanical lifting applications, Platform lifting applications, Food processing machinery, Construction sector, Defense industry and Lift tables.

Product Catalog

Standard Machine Screw Jack.pdf

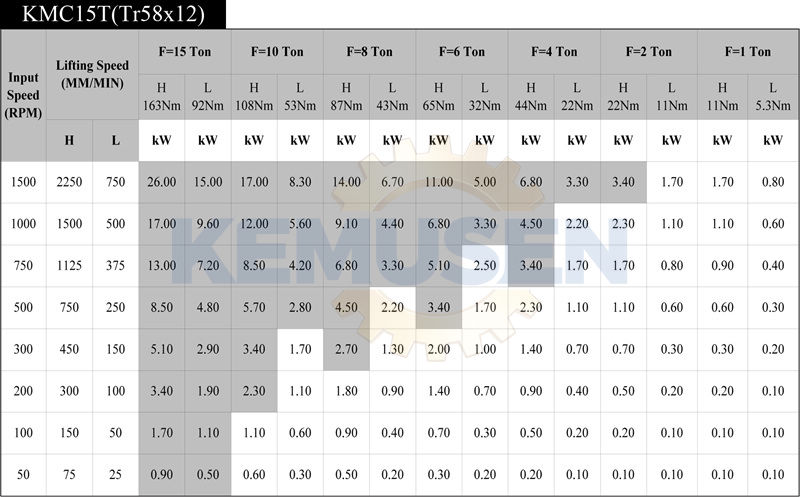

Product Specifications

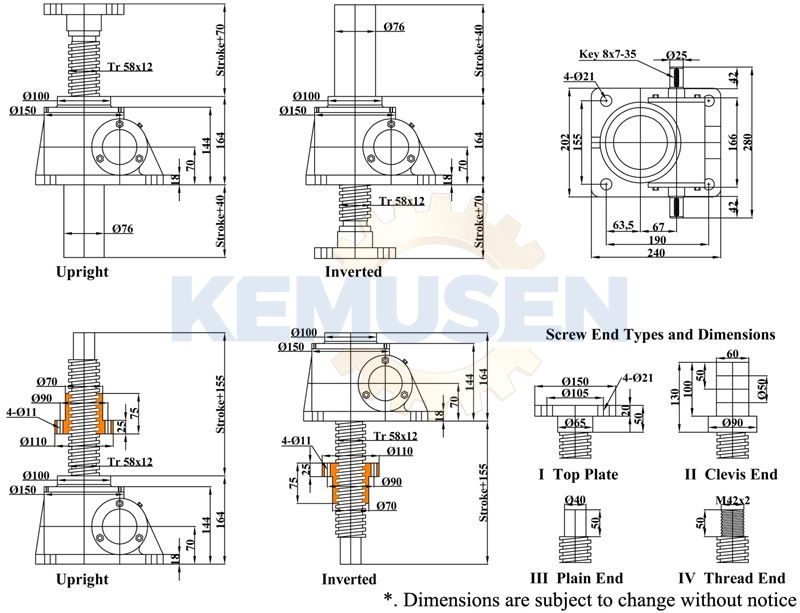

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
