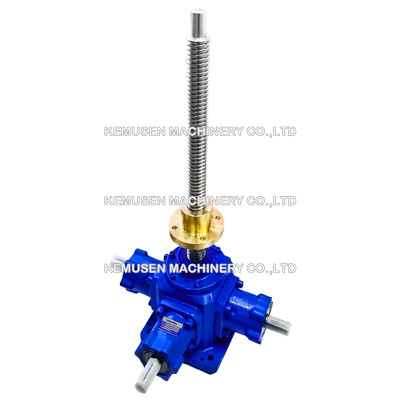

15 Ton Bevel Gear Screw Jack

15 Ton Bevel Gear Screw Jack with a 15-ton static load capacity, also called a quick lifting screw jack. Available in 3:1 bevel gear ratios. Lifting screw diameter 65 mm, pitch 12 mm, custom 24 mm lead. There are no standard stroke and screw jacks travel lengths are built with customers required, maximum stroke length up to 4000 mm. All high bevel gear screw jacks are equipped with hardened, sharpened and spiral toothed bevel gear transmissions for high lifting speed and greater duty cycle. By connecting individual bevel gear screw jacks with drive shafts lifting systems can be realized in a simple way. With the rich accessories many problems can be solved with the standard program.

Product Catalog

Bevel Gear Machine Screw Jack.pdf

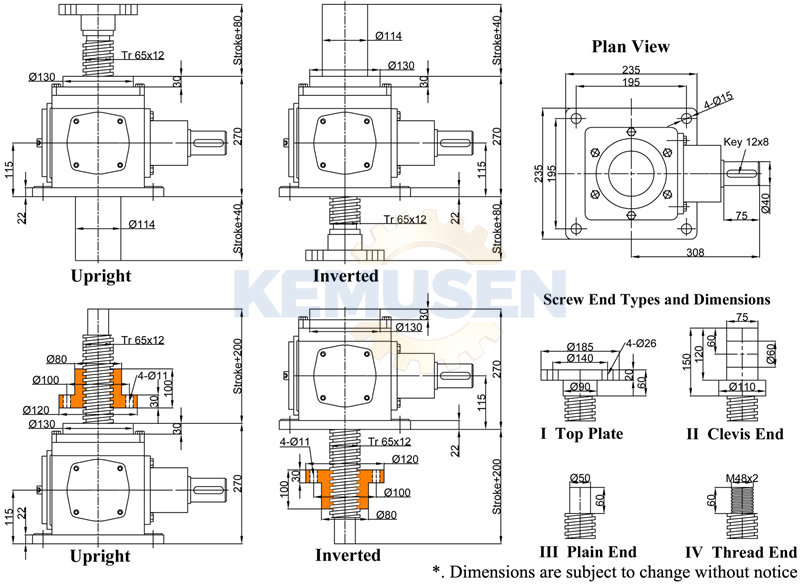

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
