15 Ton Bevel Gear Ball Screw Jack

15 Ton Bevel Gear Ball Screw Jack with a high precision Ballscrews 6310 and 6320. The bevel gear jack is made with spiral bevel reduction gears and ball screws, available in both translating and rotating screw versions. Bevel ball jacks achieve fast travel speeds and are rated for near continuous operation. Available in 3:1 bevel gear ratios. There are no standard stroke and bevel ball jacks travel lengths are built with customers required, maximum stroke length up to 4000 mm. These bevel gear jacks provides a fast lifting speed with ball screw. Due to the high efficiency of the integral bevel gears a high overall efficiency is provided. Simple and effective solution in comparison with hydraulic and pneumatic systems.

Product Catalog

Bevel Gear Ball Screw Jack.pdf

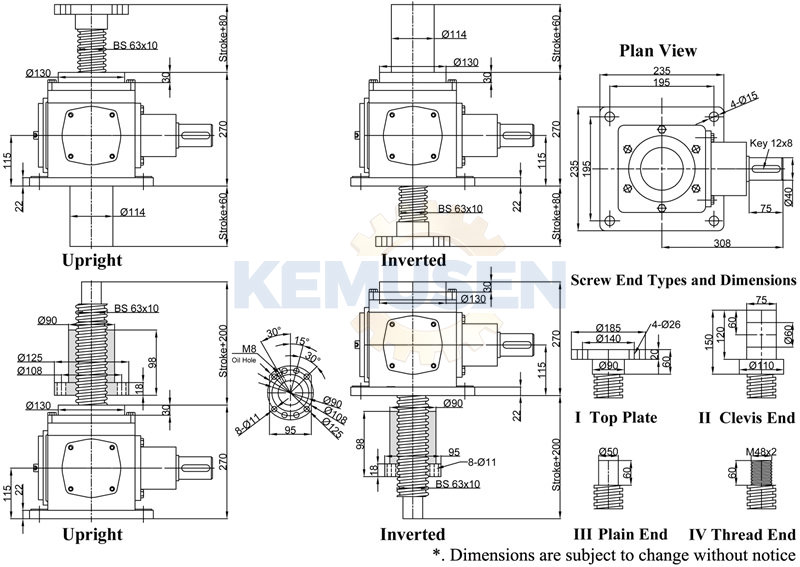

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
