100 Ton Screw Jack

100 Ton Screw Jack with self-locking trapezoidal screw Tr160x24. The screw jacks with components such as bevel gearboxes, motors, gear reducers, shafting, coupling, and motion control devices to create complete multi-jack systems. We offer complete systems to meet your requirements. Gear ratios include 12:1 and 36:1. When faced with the need to lift, lower, push or pull a load, especially a heavy load, and hold it in the correct position, a screw jack or multiple jack system may provide the best linear motion solution when considering its performance or cost ratio. Many design engineers consider screw jacks for use in their applications, as they have a unique ability to be linked together using shafting and miter boxes using a single common motor.

Product Catalog

Standard Machine Screw Jack.pdf

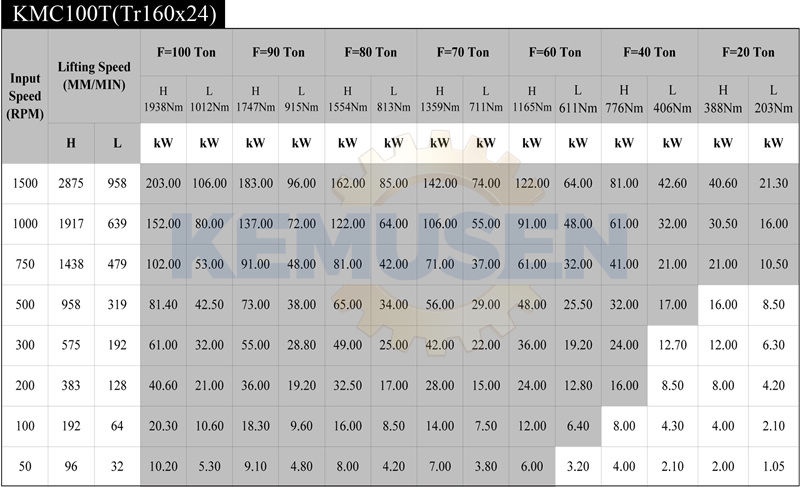

Product Specifications

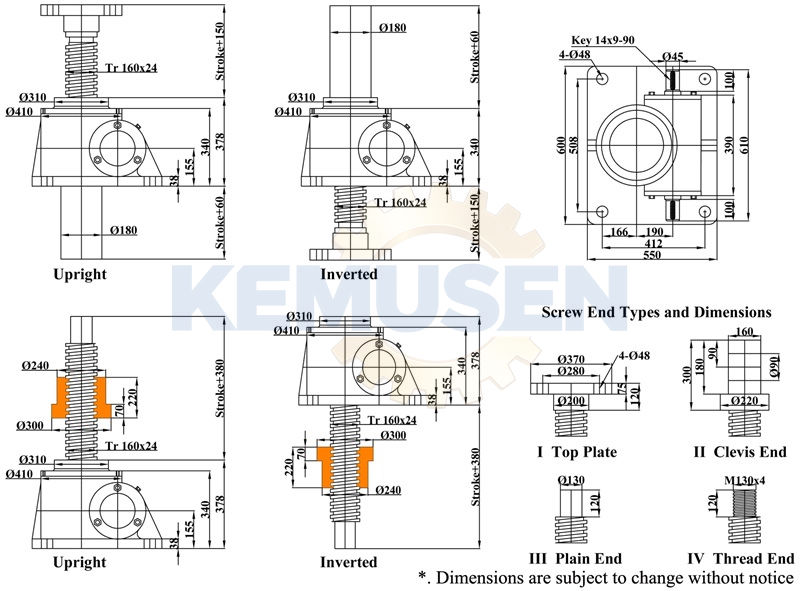

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
