10 Ton Stainless Steel Machine Screw Jack

10 Ton Stainless Steel Machine Screw Jack lift and precisely position maximum static loads up to 10 tons. Stainless steel trapezoidal screw diameter 58 mm, pitch 12 mm, single lead stainless screw jacks with self locking. Custom double lead 24 mm, double lead stainless screw jacks offer increased travel speed, but weak self-locking. Available in 8:1, 12:1 and 24:1 worm gear ratios. These stainless steel jacks are available in translating and rotating screw designs. The design is optimised for reliable performance in some of the most arduous environments. Plus there is a large selection of standard accessories and options so you can configure a standard design that is just right for your application. These options include Anti-Backlash, Anti-Rotation (Keyed) and Safety Nut designs.

Product Catalog

Stainless Steel Machine Screw Jack.pdf

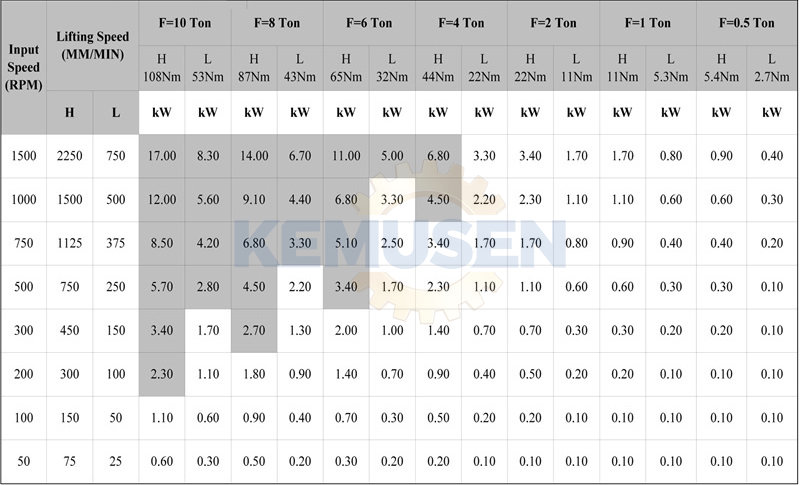

Product Specifications

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
