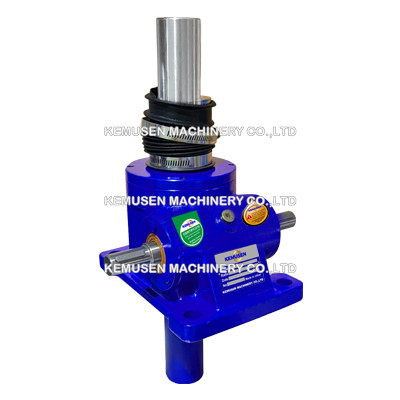

10 Ton Screw Jack

10 Ton Screw Jack with self-locking trapezoidal screw Tr58x12 has a uniform lifting speed, added economy can be realized in raising unevenly distributed loads by operating the different capacities in union. Machine screw jack models with higher ratios are self-locking and will hold heavy loads in position indefinitely without creep. Gear ratios include 8:1, 12:1 and 24:1. They can be used to push, pull, apply pressure and as linear actuators. The screwjacks configurations include Upright Translating Screw Jack, Inverted Translating Screw Jack, Upright Rotating Screw Jack, Inverted Rotating Screw Jack, Double Clevis Screw Jack, Upright Keyed Screw Jack, Inverted Keyed Screw Jack, Upright Anti-Backlash Screw Jack and Inverted Anti-Backlash Screw Jack. Can customize jacks to your specifications.

Product Catalog

Standard Machine Screw Jack.pdf

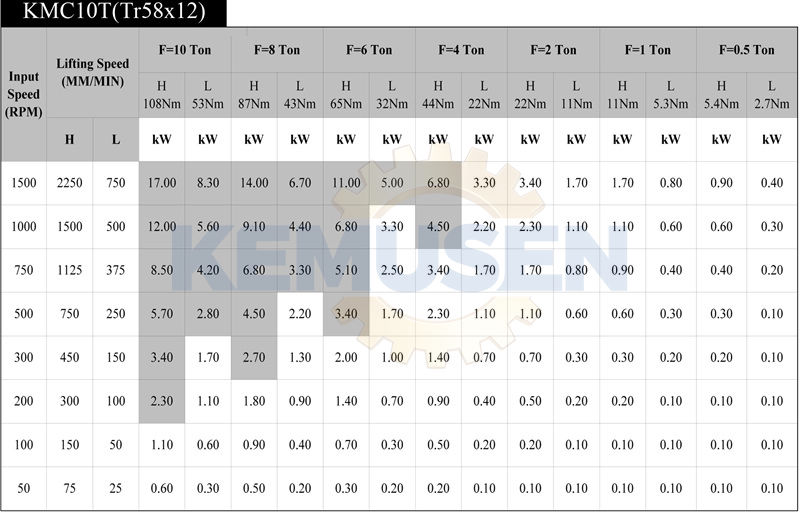

Product Specifications

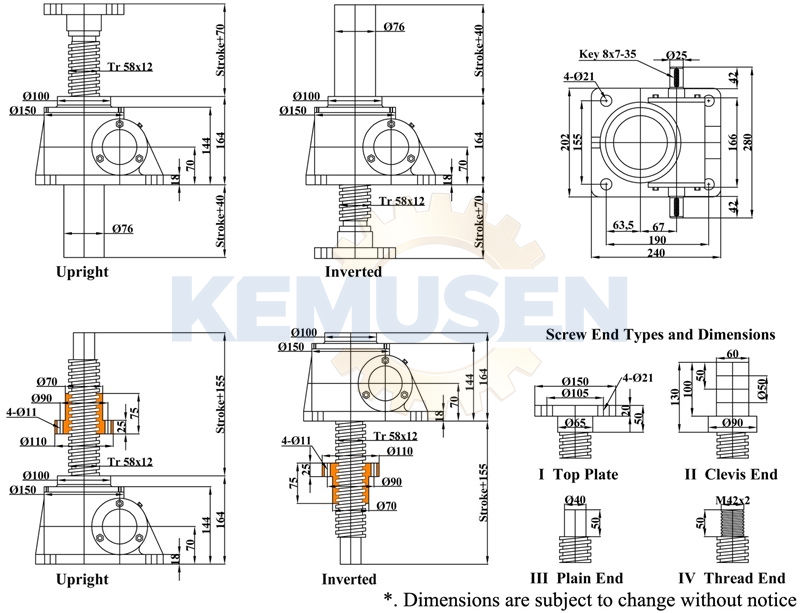

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
