10 Ton Bevel Gear Screw Jack

10 Ton Bevel Gear Screw Jack with a 10-ton static load capacity, also called a quick lifting screw jack. Available in 3:1 bevel gear ratios. Lifting screw diameter 50 mm, pitch 10 mm, custom 20 mm lead. There are no standard stroke and screw jacks travel lengths are built with customers required, maximum stroke length up to 3500 mm. The bevel gear jack offers higher efficiency and greater speed than other 10 ton mechanical worm gear screw jacks. As an added benefit, bevel gear jacks also act as 90 degree angle gearboxes, making them an ideal choice for multiple screw jacks systems. As many as three output shafts may be specified for mounting motors, limit switches and other accessories. Bevel gear jacks with single lead screws provide the benefits of a self-locking screw, and bevel gear jacks with double lead screws offer even greater travel speed.

Product Catalog

Bevel Gear Machine Screw Jack.pdf

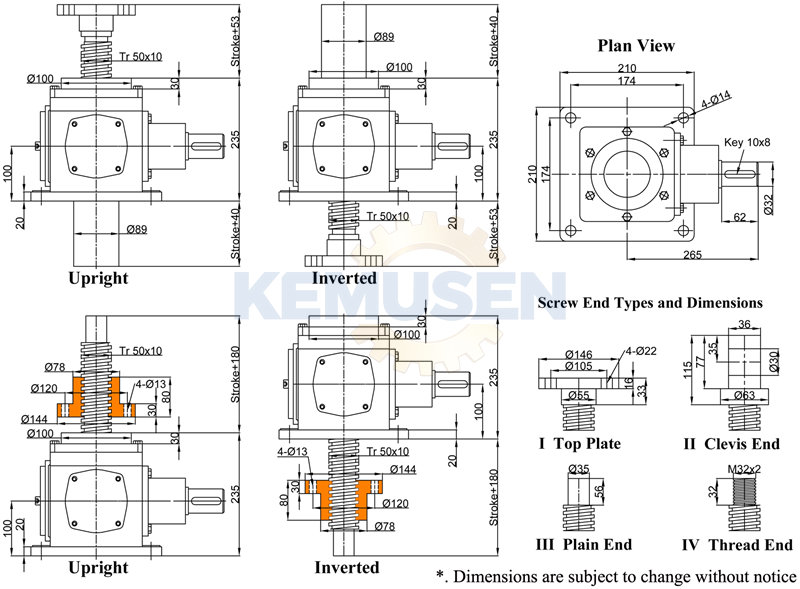

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
