10 Ton Bevel Gear Ball Screw Jack

10 Ton Bevel Gear Ball Screw Jack with a high precision Ballscrews 5010 and 5020. The bevel gear jack is made with spiral bevel reduction gears and ball screws, available in both translating and rotating screw versions. Bevel ball jacks achieve fast travel speeds and are rated for near continuous operation. Available in 3:1 bevel gear ratios. There are no standard stroke and bevel ball jacks travel lengths are built with customers required, maximum stroke length up to 3500 mm. These are fastest jacks, able to attain travel speeds of 150 mm per minute. Available in Translating and Travelling Nut designs, bevel ball actuators act as miter boxes, making them an ideal choice for multi-jack systems.

Product Catalog

Bevel Gear Ball Screw Jack.pdf

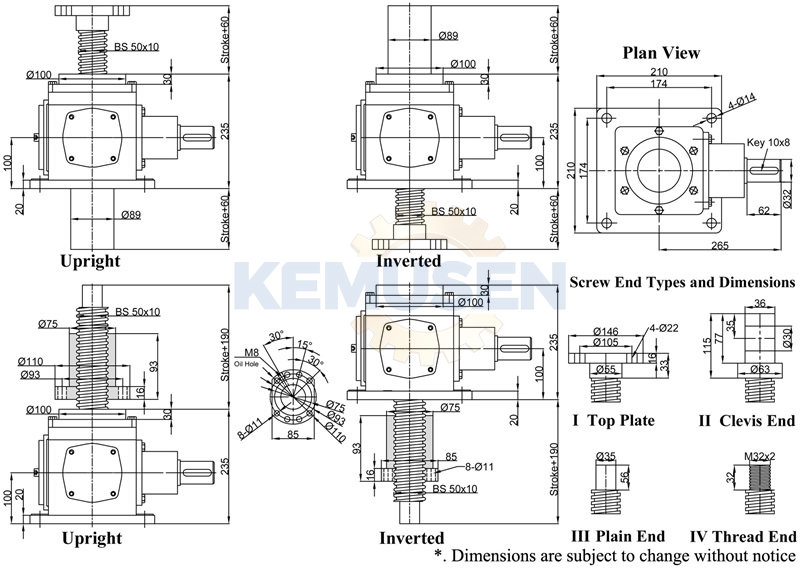

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
