1 Ton Stainless Steel Machine Screw Jack

1 Ton Stainless Steel Machine Screw Jack lift and precisely position maximum static loads up to 1 tons. Stainless steel trapezoidal screw diameter 24 mm, pitch 4 mm, single lead stainless screw jacks with self locking. Custom double lead 8 mm, double lead stainless screw jacks offer increased travel speed, but weak self-locking. Available in 6:1, 12:1 and 24:1 worm gear ratios. These stainless steel jacks are specifically designed for applications that are located in wet, corrosive and harsh environments. The key features include Complete Stainless Steel Screw Jack design. Metric Single Face Machine Screw Jacks (mechanical actuators). Translating and Rotating Screw configurations. Upright and Inverted Screw design types. Anti-rotation (keyed) design option. Safety Nut design option. Anti-backlash design option. Six mounting options including trunnion and double clevis. Special custom designs available.

Product Catalog

Stainless Steel Machine Screw Jack.pdf

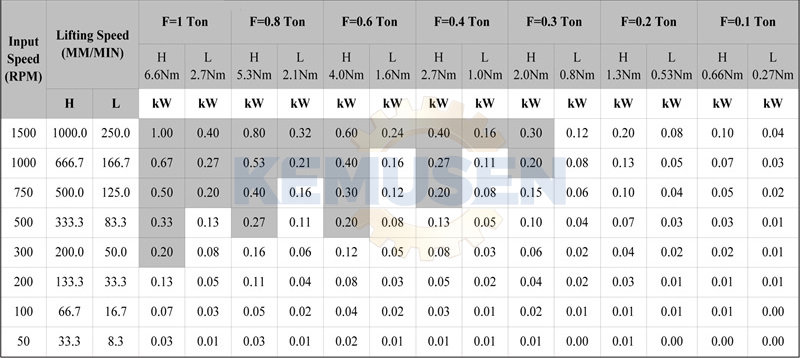

Product Specifications

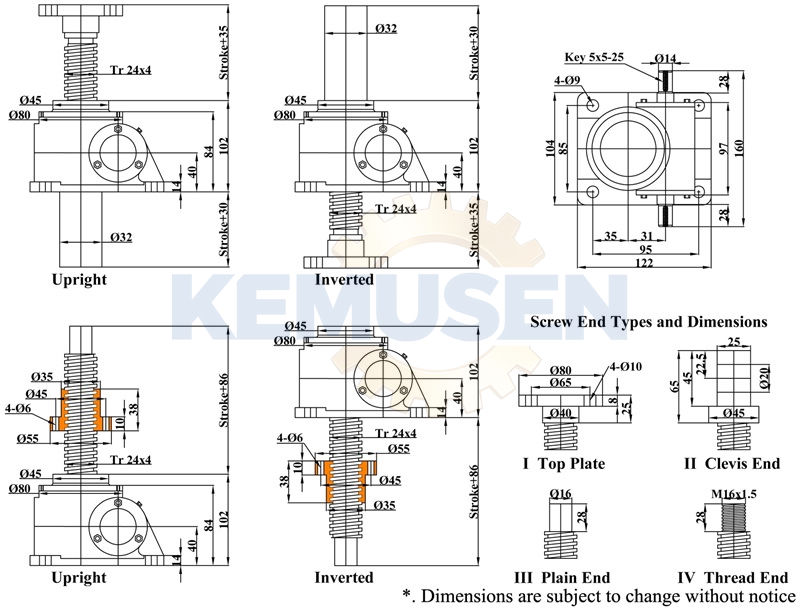

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
