1 Ton Bevel Gear Screw Jack

1 Ton Bevel Gear Screw Jack with a 1-ton static load capacity, also called a quick lifting screw jack. Available in 2.5:1 bevel gear ratios. Lifting screw diameter 24 mm, pitch 4 mm, custom 8 mm lead. There are no standard stroke and screw jacks travel lengths are built with customers required, maximum stroke length up to 2000 mm. These bevel gear type jacks are use grinding-grade spiral bevel gear for higher speed, higher efficiency and higher duty circle application than other mechanical worm gear screw jacks. Bevel gear jacks with single lead screws 4 mm provide the benefits of a self-locking screw, with double lead screws 8 mm offer even greater travel speed.

Product Catalog

Bevel Gear Machine Screw Jack.pdf

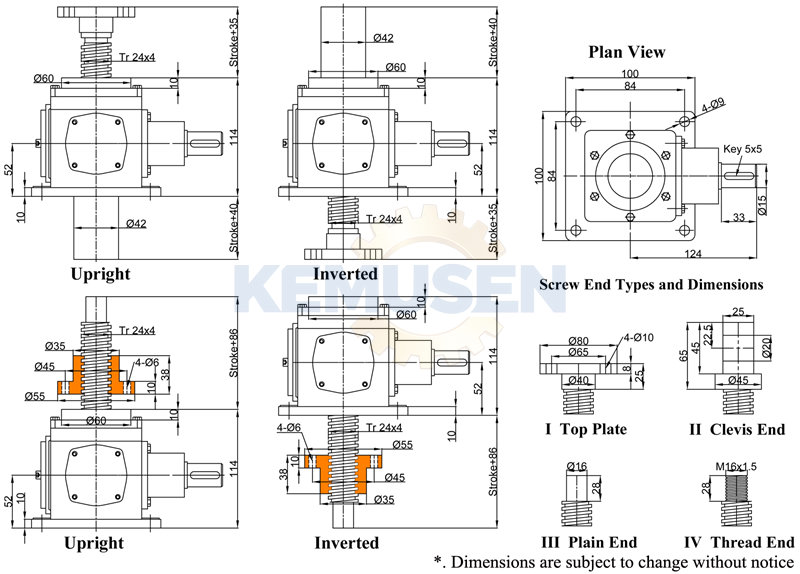

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
