1 Ton Bevel Gear Ball Screw Jack

1 Ton Bevel Gear Ball Screw Jack with a high precision Ballscrews 2005 and 2010. This type Bevel gear screw jacks are made with spiral bevel reduction gears and ball screws, available in both rotating and travelling versions. Available in 2.5:1 bevel gear ratios. There are no standard stroke and bevel ball jacks travel lengths are built with customers required, maximum stroke length up to 1500 mm. These bevel gear design eliminates the need for miter gear boxes in multi-jack systems. This design allows higher travel speeds and higher duty cycles. Bevel ball jacks achieve fast travel speeds and are rated for near continuous operation.

Product Catalog

Bevel Gear Ball Screw Jack.pdf

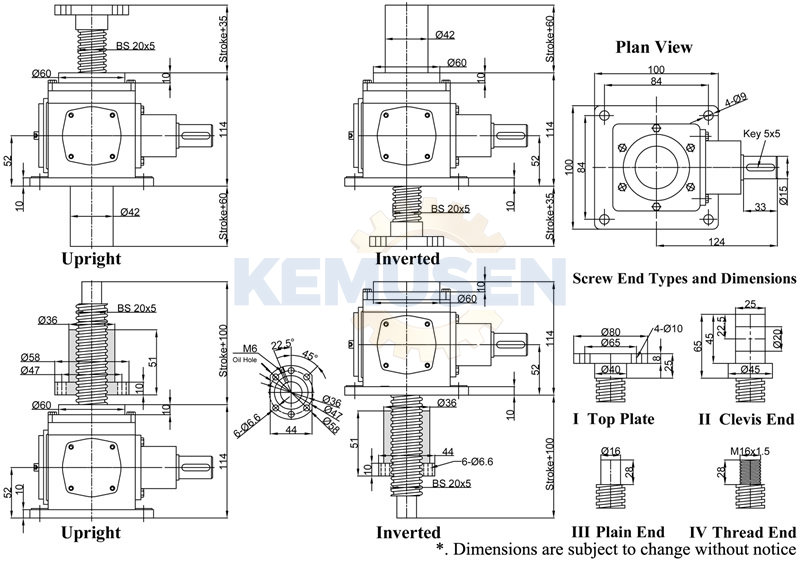

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
