0.5 Ton Screw Jack

0.5 Ton Screw Jack with self-locking trapezoidal screw Tr16x4 offer precise positioning, uniform lifting speeds and capacity up to 0.5 tons. Standard model configurations include upright or inverted units with translating or rotating lifting screws. End configurations include top plate, plain, threaded, and clevis ends. The basic components of machine screw jacks are lifting screw, gear set, and thrust bearing. Gear ratios include 5:1 and 20:1. Operated manually or by means of gear motors, machine screw jacks models can be used singly, in tandem or in multiple arrangements.

Product Catalog

Standard Machine Screw Jack.pdf

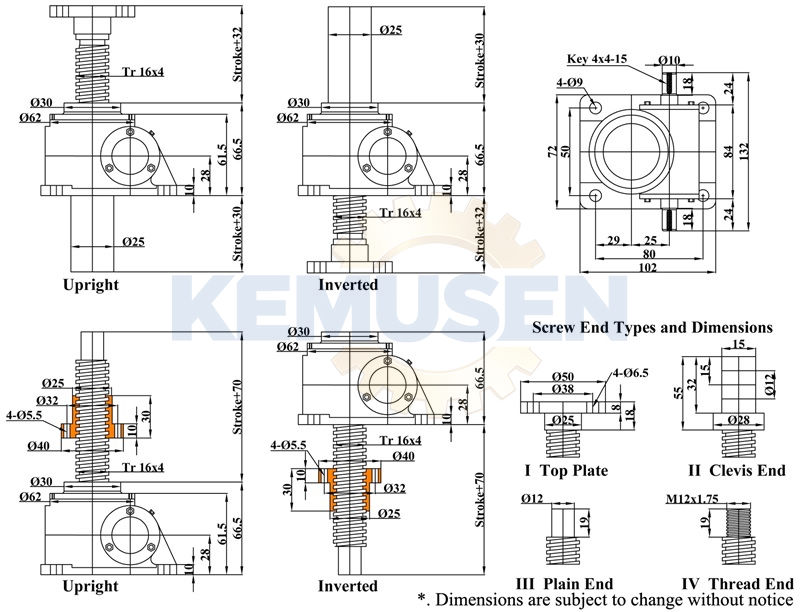

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
